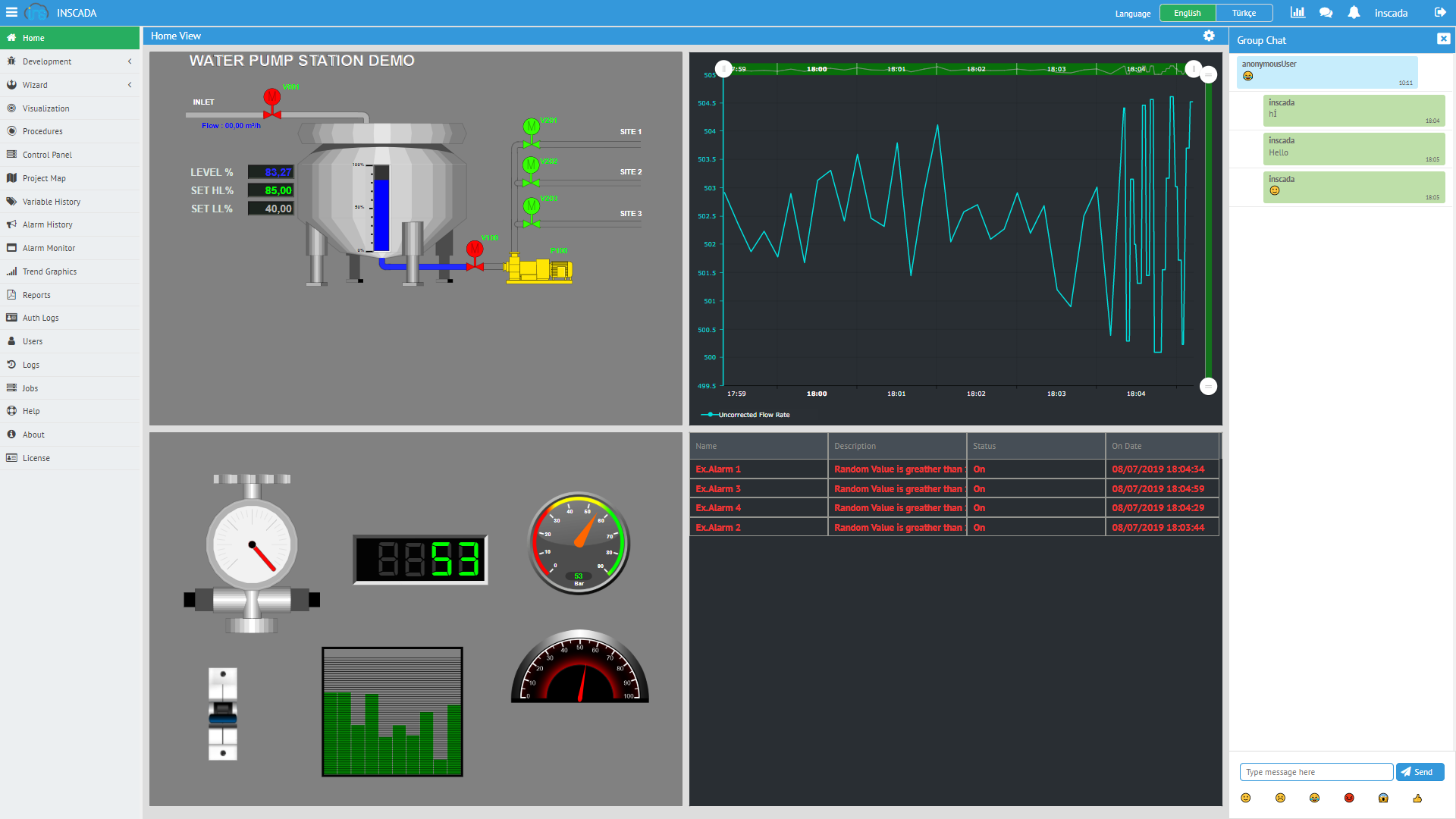

Before starting this tutorial, you should be familiar with the inSCADA user interface. inSCADA has a very simple interface as shown in the picture below.

As shown in Figure 1, inSCADA offers an intuitive interface with user options on the left, an area where menu options are presented in the middle, and buttons for language switching in the upper left corner.

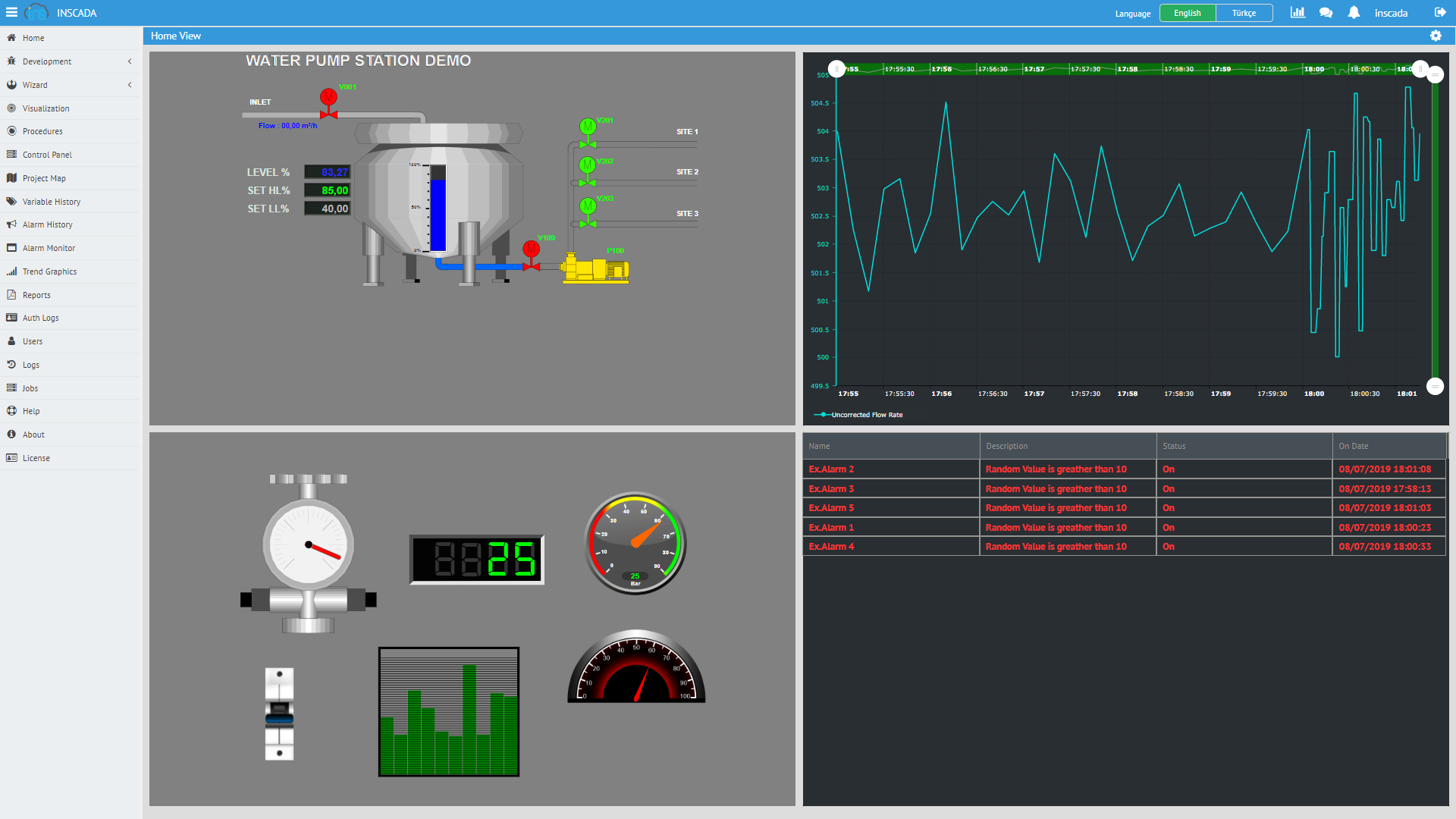

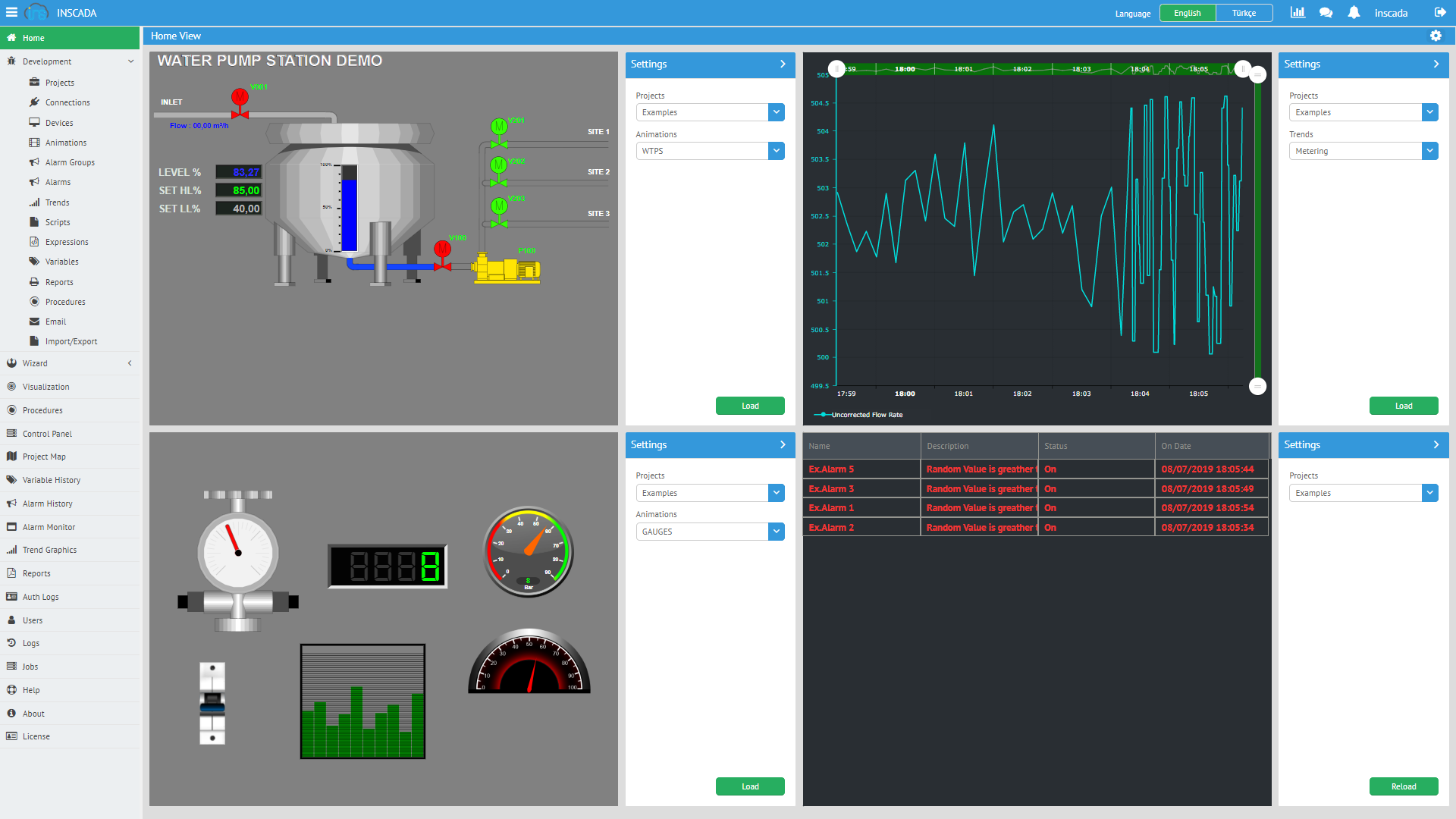

On the Home screen, there are dashboards where users can display 2 animation pages, 1 Trend and 1 alarm page for their projects. Dashboard settings can be changed by pressing the icon in the upper left corner.

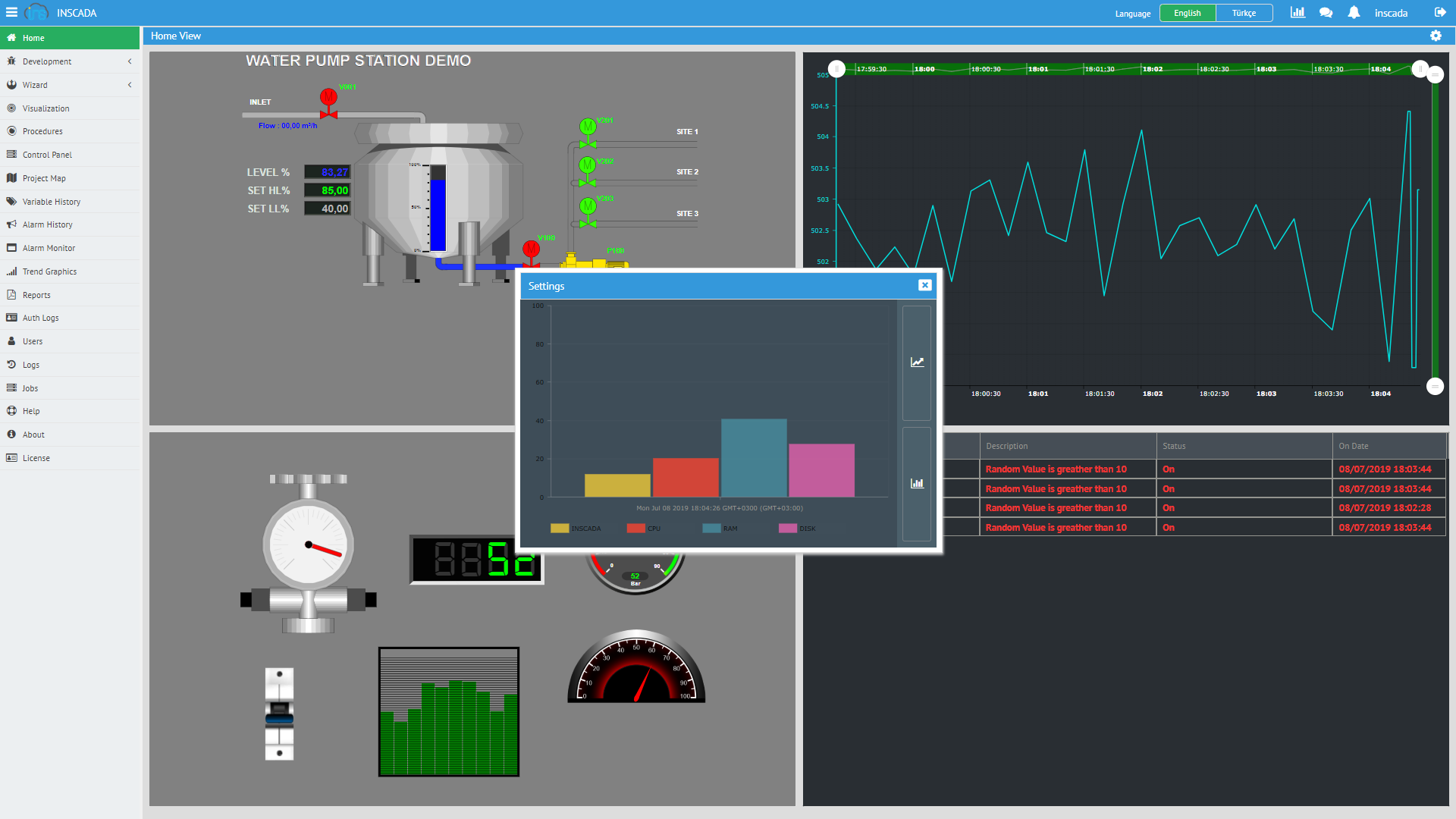

On the inSCADA screen, you can see the status of system resources by clicking on the icon in the upper left corner.

You can enter the messaging system by pressing theicon in the upper left corner of the inSCADA screen. Here, all users connected to the inSCADA platform can send messages to each other and carry out their joint work on the same platform in communication with each other.

Home Page
Dashboard Setting in Home Page
System Resources
Chat
