Alarm Groups

This is the part where the alarm groups are defined. Once you have created alarm groups, you can link your alarms to any group. This allows you to manage your alarms more effectively.

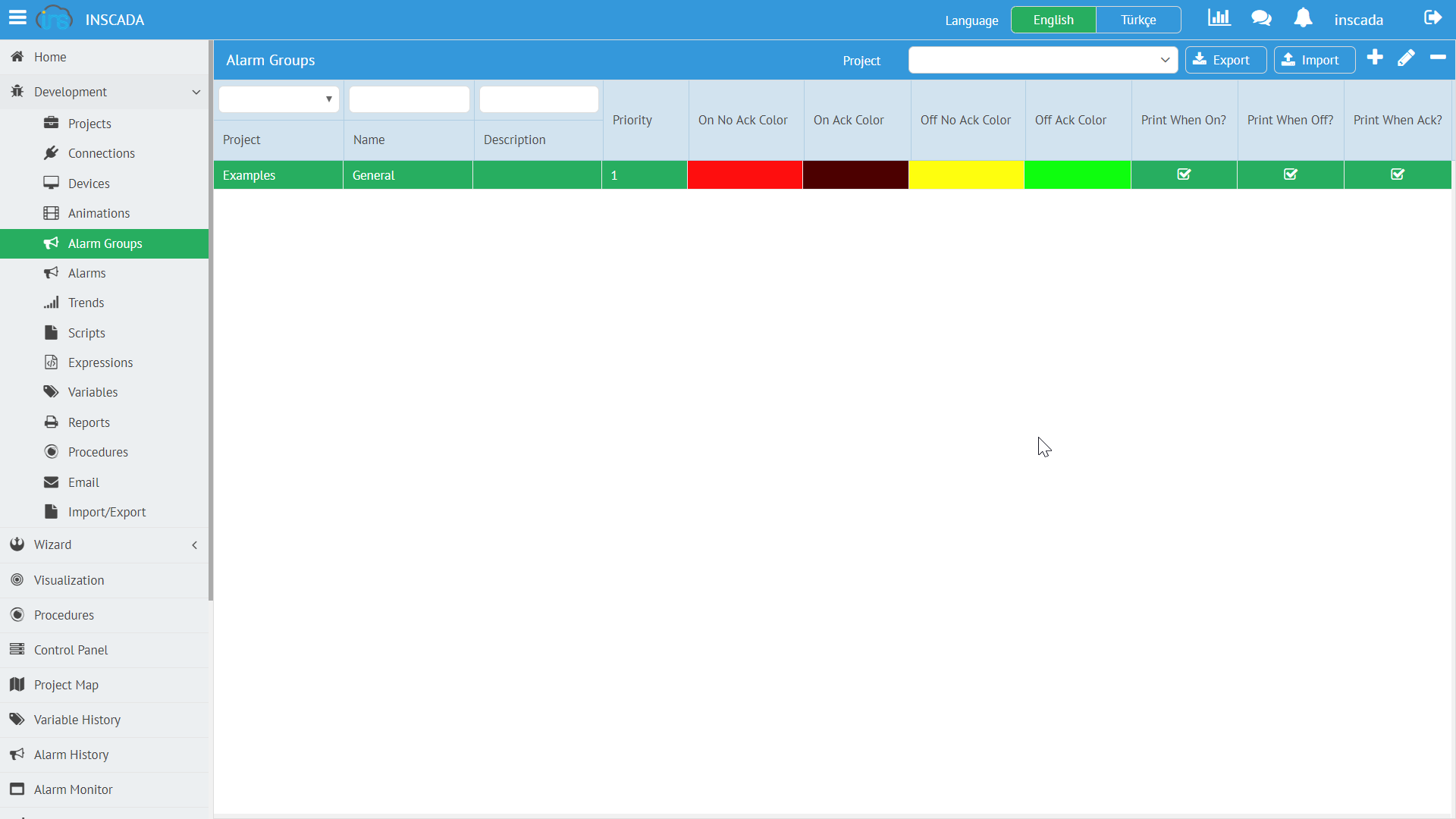

Figure 1 : Alarm Groups
You can perform Export, Import, Add, Edit and Delete operations by means of the buttons shown in Figure 2.
Figure 2 : Alarm Export, Import, Add, Edit, Delete

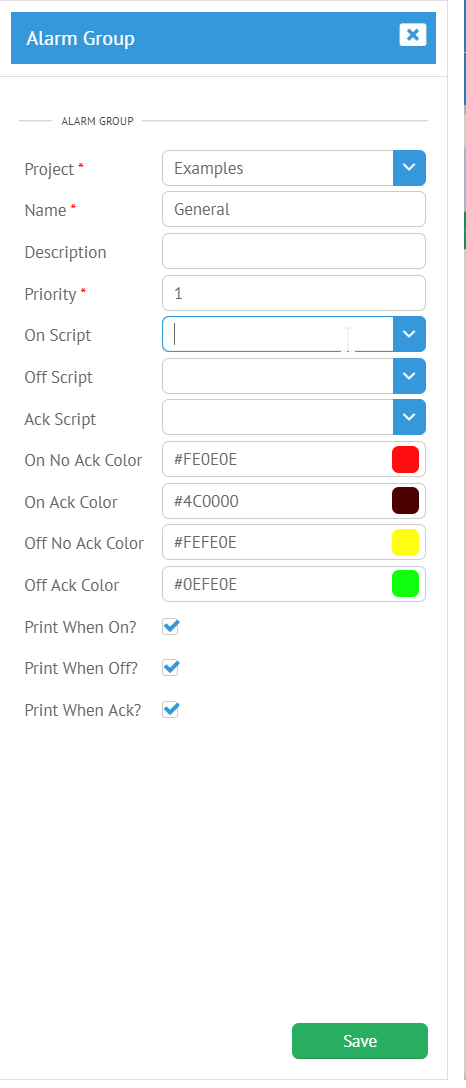

Alarm Group Add/Edit Form

As shown in Figure 3, you must enter the parameters in the drop-down form to add an alarm group.
Alarm Group Add/Edit Form

Project

You can select the project to which you want to add an alarm group.

Name

The name of the alarm group.

Description

Description of your alarm group.

Priority

You can set priority for your alarm groups. In this way, alarms connected to your alarm group are monitored firstly.

On Script

You can define an on-script for your alarm groups. This allows you to run a script when any alarm connected to your alarm group is on.

Off Script

You can define an off-script for your alarm groups. This allows you to run a script when any alarm connected to your alarm group is off.

Ack Script

You can define ack-script for your alarm groups. This allows you to run a script when any alarm connected to your alarm group is acknowledged by the user.

On No Ack Color

You can set the display color for the unconfirmed ON status of alarms connected to your alarm groups.

On Ack Color

You can specify the display color for the ON status of alarms connected to your alarm groups.

Off No Ack Color

You can specify the display color for the unconfirmed OFF status of alarms connected to your alarm groups.

Off Ack Color

You can specify the display color for the approved OFF status of alarms connected to alarm groups.
If the alarms connected to your alarm groups are ON, you can print them to the Line Printer.
In case of alarms connected to your alarm groups are OFF, you can print them to Line Printer.
When the alarms connected to your alarm groups are confirmed, you can print them to the Line Printer.
