Scripts

You can write macros in inSCADA in javascript language and you can have these scripts run periodically. You can use the inSCADA APIs to interact with the inSCADA platform using your scripts. See APIs...

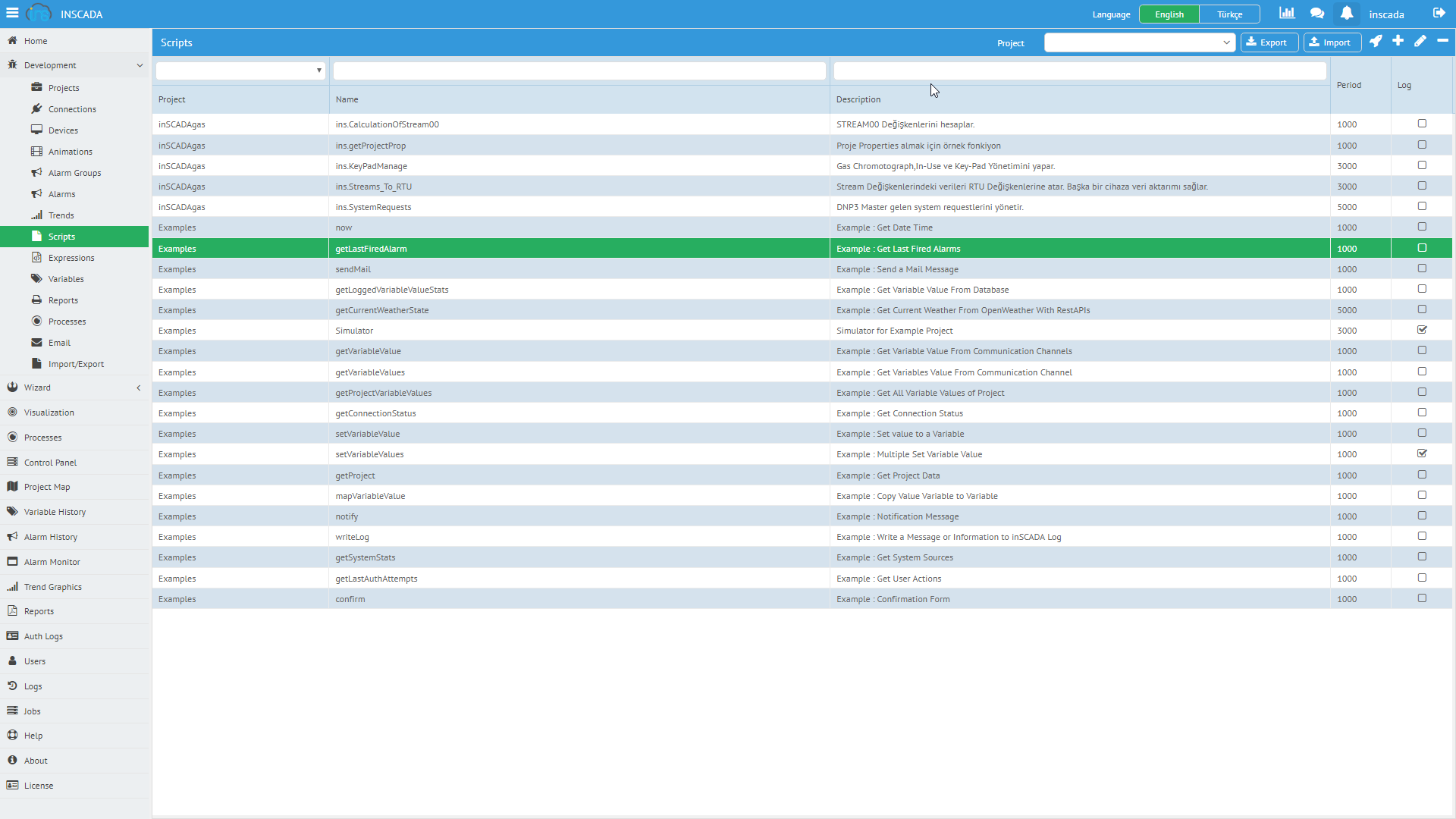

Figure 1 : Developement-Scripts
As shown in Figure 1, you can create scripts in inSCADA depending on your projects. To do this, press the button
in the upper right corner and the form in Figure 2 will open.

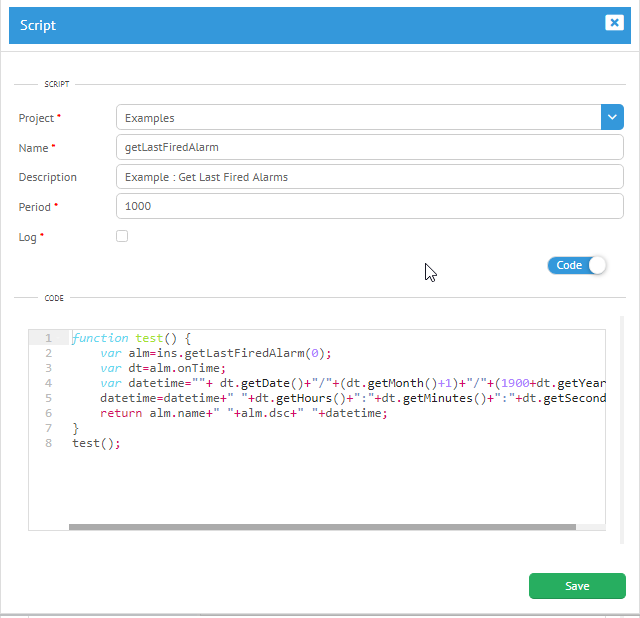

Figure 2 : Script Add/Edit Form

Project

You can select the project to which your script will be linked.

Name

Script Name.

Description

Script Description.

Period

When you schedule your script, you can enter the run period in the background. If you enter 1000 as a value, it will run for 1 sec.
You should use the Control Panel to run your scripts automatically, i.e. to schedule them. Take a look at the Script section of the Control Panel.

Log

When you select Log, an information message about your script will be written in Logs.

Code
